Apollo Seiko Soldering iron Tips
The APOLLO soldering tips mainly including TM(AC110V, the total length is 145mm), TS(AC110V, the total length is 101mm), DCM(AC48V, the total length is 145mm), DS(old type: DCS)(AC48V,the total length is 101mm), DN(old type: DCN): AC48V, total length 101mm, with N2 sleeve)

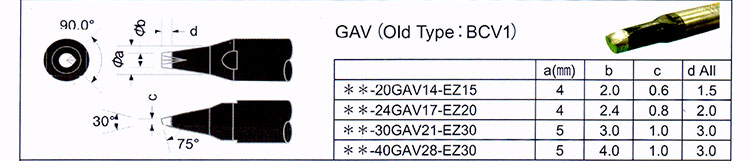

Specifications of Apollo Seiko DS-20GAV14-EZ15 / DCS-20BCV1 Soldering Head
Two side tinning
DC48V, Total Length: 101mm
Diameter: 6.4mm
Tip width: a: 4mm, b: 2.0mm
Tip thickness (c): 0.6mm
Tin area, two side (d): 1.5mm
Choice: Black Tip
Lead Time: 1~2 Weeks
Material: copper
Apllication: For all Apollo Seiko soldering robot
Advantage: up to 300 degree centigrade in 6 seconds
Custom-made service available
Apollo soldering robot tips model:
- D series: 08D, 10D, 13D, 16D, 20D, 24D, 30D, 40D, 50D, 60D, 80D
- D-2 series: 08D-2, DV10D-2, 13D-2, 16D-2, 20D-2, 24D-2, 30D-2, 40D-2, 50D-2, 60D-2
- DV2 series: 13DV2, 162, 20DV2, 24DV2, 30DV2, 40DV2, 50DV2
- DV1 series: 10DV1, 13DV1, 16DV1, 20DV1, 24DV1, 30DV1, 40DV1, 50DV1
- BCV1 series: 20BCV1, 24BCV1, 30BCV1, 40BCV1
- DV1-2 series: 10DV1-2, 13DV1-2, 16DV1-2, 20DV1-2, 24DV1-2, 30DV1-2, 40DV1-2, 50DV1-2, 60DV1-2, 80DV1-2
- PC series: 10PC, 13PC, 16PC, 20PC, 24PC, 30PC, 40PC, 50PC, 60PC
- PVC series: 20PVC2, 24PVC2, 30PVC2, 40PVC2, 50PVC2
- FPR series: 16FPR, 20FPR, 24FPR, 30FPR, 40FPR, 50FPR
- R series: 20R, 24R, 30R, 40R, 50R
- UPL series: 16UPL, 22UPL, 32UPL
www.yinate.com / sales2@yinate.com
|
|
Apollo Seiko DS-20GAV14-EZ15 / DCS-20BCV1 Nitregen Soldering iron tips for Apollo soldering robot DS Series iron tips Images
|
